Passive Multipliers


Customizable: Yes

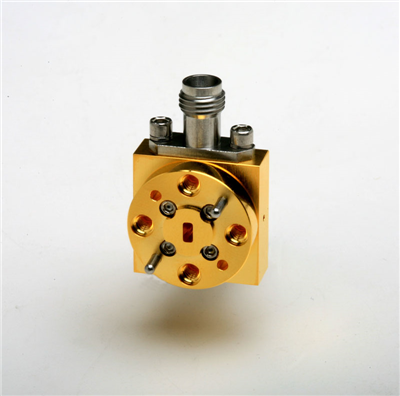

Spacek Labs' passive frequency doubler, Model E-2X, has an input frequency range of 30 to 45 GHz generating an output frequency range of 60 to 90 GHz. This is a cost-effective frequency multiplier with similar models available from 18 to 110 GHz in complete waveguide output bandwidths from K-band to W-band. All designs are a balanced configuration to suppress undesired harmonics and are unconditionally stable for any input/output VSWR. To meet your needs, features can be added such as coaxial output adapters and additional filtering. MIL-spec or space-qualified units available.

General Parameters:
Input Frequency (GHz): 30-45
Output Freq. (GHz): 60-90
Conv. Loss (dB) (max): 15
Pin (dBm) (max): 18
