Broadband Downconverters (Mixers)

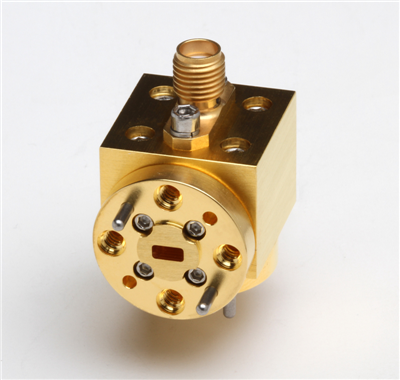

M60-5

Customizable: Yes

Spacek Labs model M60-5 is a V-Band mixer optimized for the RF frequency range of 55 to 65 GHz. Our cross-bar mixer design uses two custom-made hermetic point-contact Schottky barrier diodes. This mixer can be designed in a variety of frequency combinations from single point to full waveguide bands.

General Parameters:
RFin (GHz): 55-65 (WR-15 | UG385/U)
LOin (GHz): 55-65 (WR-15 | UG385/U)
IFout (GHz): DC-10 (SMA)
Conv. Loss (dB) (typ/max): 5.0 / 7.0
Quick Ship:
