Broadband Downconverters (Mixers)


Customizable: Yes

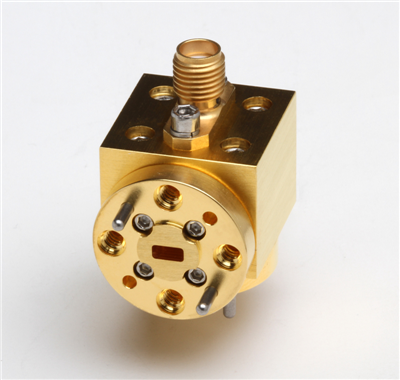

Spacek Labs model MV-13 is a V-band mixer for the RF frequency range of 50 to 75 GHz. Our cross-bar mixer design uses two custom-made hermetic point-contact Schottky barrier diodes. This mixer can be designed in a variety of frequency combinations from single point to full waveguide bands.

General Parameters:
RFin (GHz): 50-75 (WR-15 | UG385/U)
LOin (GHz): 49 (WR-15 | UG385/U)
IFout (GHz): 1-26 (SMA)
Conv. Loss (dB) (typ/max): 6.0 / 12.0
