Broadband Downconverters (Mixers)

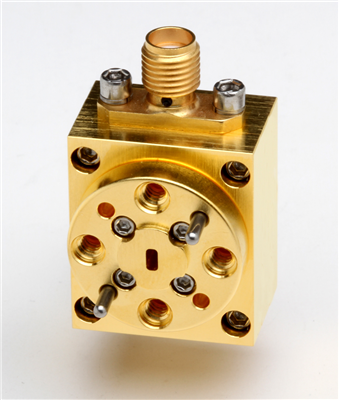

MW-1

Customizable: Yes

Spacek Labs model MW-1 is a W-band mixer for the RF frequency range of 75 to 110 GHz. Our cross-bar mixer design uses two custom-made hermetic point-contact Schottky barrier diodes. This mixer can be designed in a variety of frequency combinations from single point to full waveguide bands.

General Parameters:
RFin (GHz): 75-110 (WR-10 | UG387/U Mod)
LOin (GHz): 75-110 (WR-10 | UG387/U Mod)
IFout (GHz): DC-3 (SMA)
Conv. Loss (dB) (typ/max): 7.5 / 11.5
Quick Ship:
