Passive Multipliers

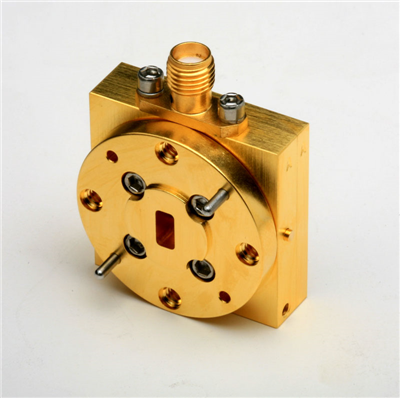

Q-2X

Customizable: Yes

Spacek Labs' passive frequency doubler, Model Q-2X, has an input frequency range of 16.5 to 25 GHz generating an output frequency range of 33 to 50 GHz. This is a cost-effective frequency multiplier with similar models available from 18 to 110 GHz in complete waveguide output bandwidths from K-band to W-band. All designs are a balanced configuration to suppress undesired harmonics and are unconditionally stable for any input/output VSWR. To meet your needs, features can be added such as coaxial output adapters and additional filtering. MIL-spec or space-qualified units available.

General Parameters:
Input Frequency (GHz): 16.5-25
Output Freq. (GHz): 33-50
Conv. Loss (dB) (max): 12.5
Pin (dBm) (max): 20
Quick Ship:
